1500 – 2600 mm
Long frames
Long-side frames sawn at both ends, with drainage holes, mounting holes and grounding marks punched in one pass.
Solar panel aluminium frame manufacturer · Meerut, U.P., India
Aluminium frames built for solar panels
Translam Industries LLP manufactures long and short frames for photovoltaic modules on a fully automated CNC line. Every frame is cut from Anodized aluminium profile, sawn to ±0.1 mm and punched in one pass.
800 – 2600 mm
±0.1 mmCutting precision
25 / minFinished frames per line
30,000Frames per 10-hour day
99.9%Finished product pass rate
About us
Precision frames for the modules that power India
We supply solar module makers with ready-to-assemble aluminium frames. Our automatic line feeds, saws, punches and embosses each profile under CNC control, so every batch matches the drawing.

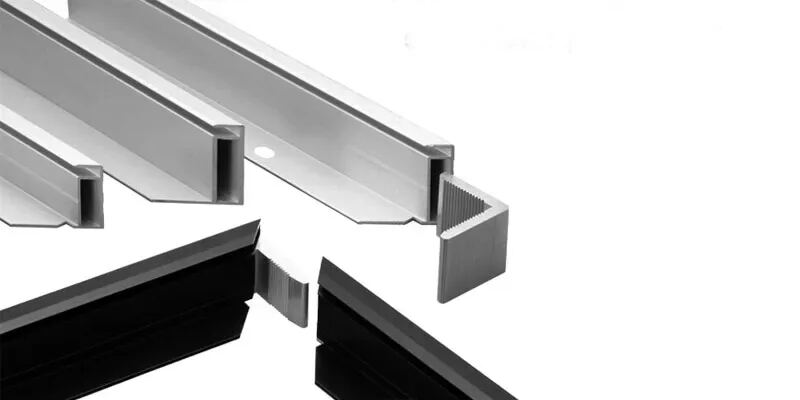

Every frame is cut from Anodized aluminium profile. Long frames, short frames with corner connectors installed, and custom sections are all produced in-house.
We create frames according to the client drawings too. Send your engineering drawing and we program the line to your lengths, angles and hole positions.
What we make
Products
800 – 1500 mm
Short frames

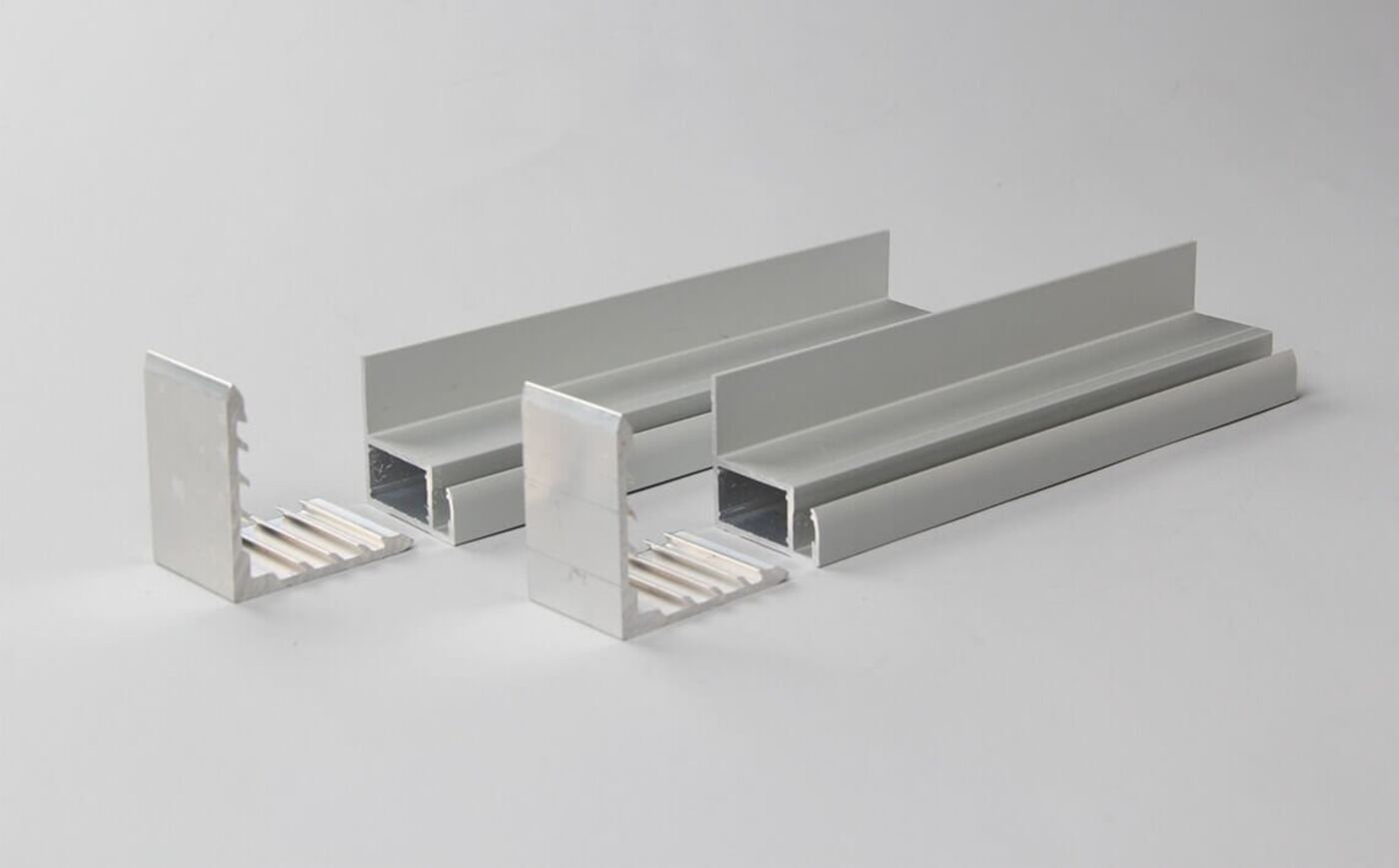

Short-side frames supplied with corner connectors inserted and riveted automatically on the line.
90° · up to 140 mm
Corner connectors
Aluminium corner keys cut on a CNC corner-connector saw, twelve pieces per cycle, with no excess material.
To your drawing
Custom frames
Frames made to the client's own drawing: profile, length, cut angle and hole layout programmed for your module.
How a frame is made
From anodized profile to finished frame

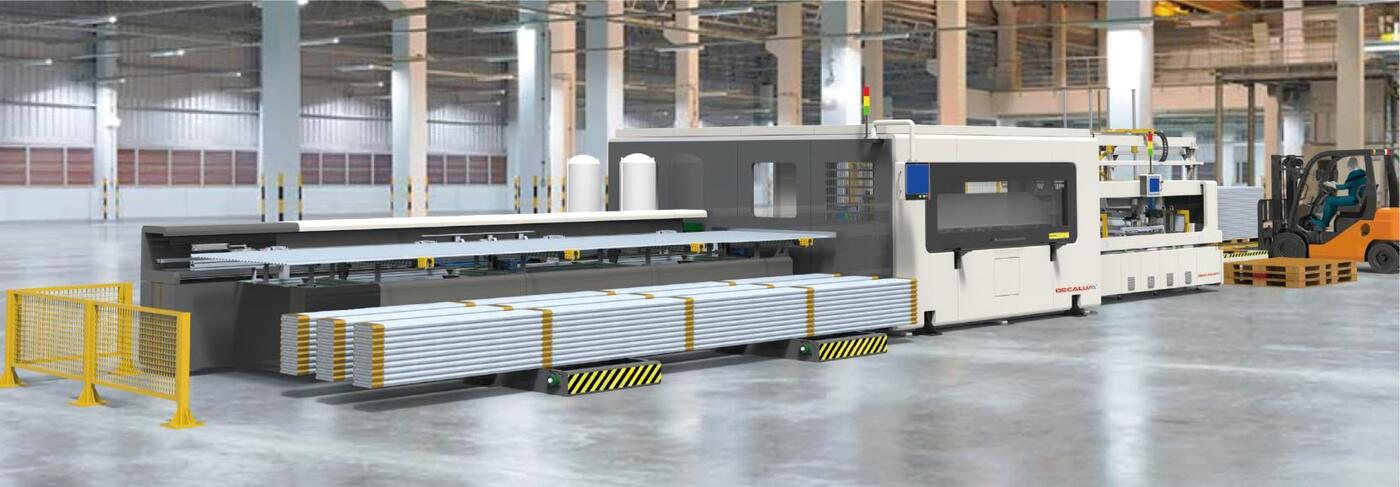

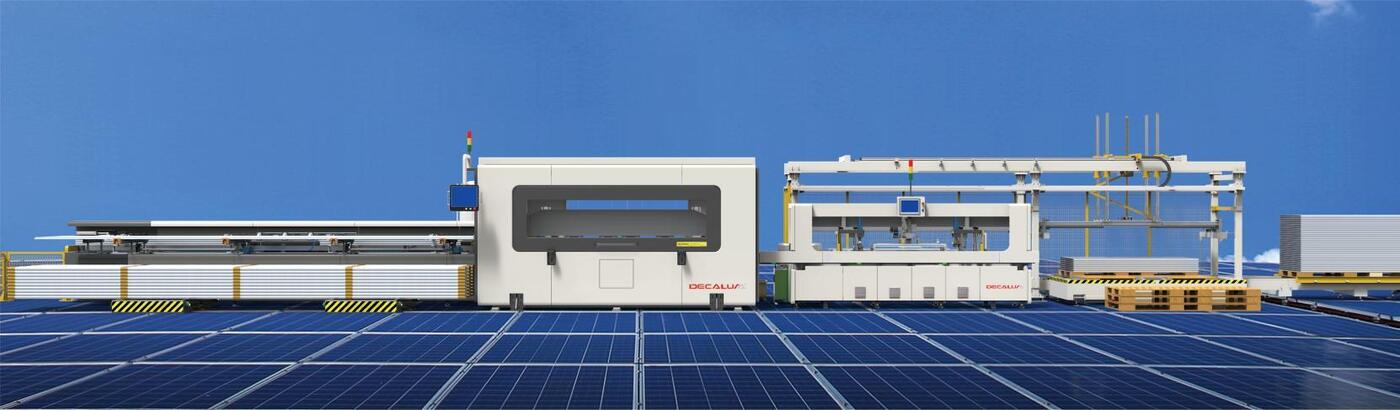

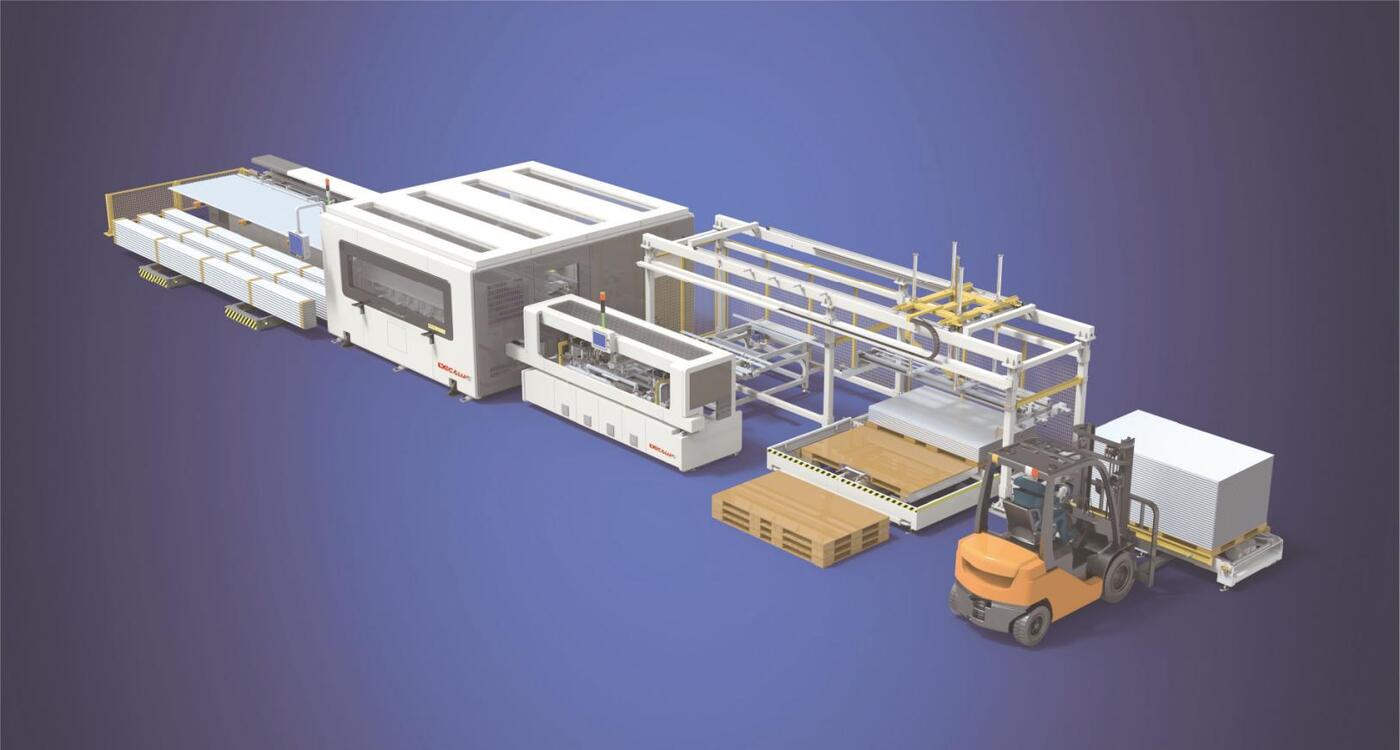

One CNC line handles the whole job. Each operation can run alone or in combination, and programs are loaded straight from the engineering drawing.
Profile loading
Anodized aluminium profiles up to 7.5 m are placed on the automatic feeder, which separates them into pairs.
Precision feed
A servo-driven rack feed clamps and advances each profile. Height-adjustable rollers keep the anodized surface free of scratches.
Double-head sawing
Two pieces are cut at once at 35°, 45°, 55° or 90°, to ±0.1 mm length and ±0.5° angle.
Chip separation
Conveyors and vacuum collection carry aluminium chips and offcuts away from the cut parts.
Hole punching
Drainage holes, mounting holes and grounding marks are punched together in one integrated station.
Embossing & corners

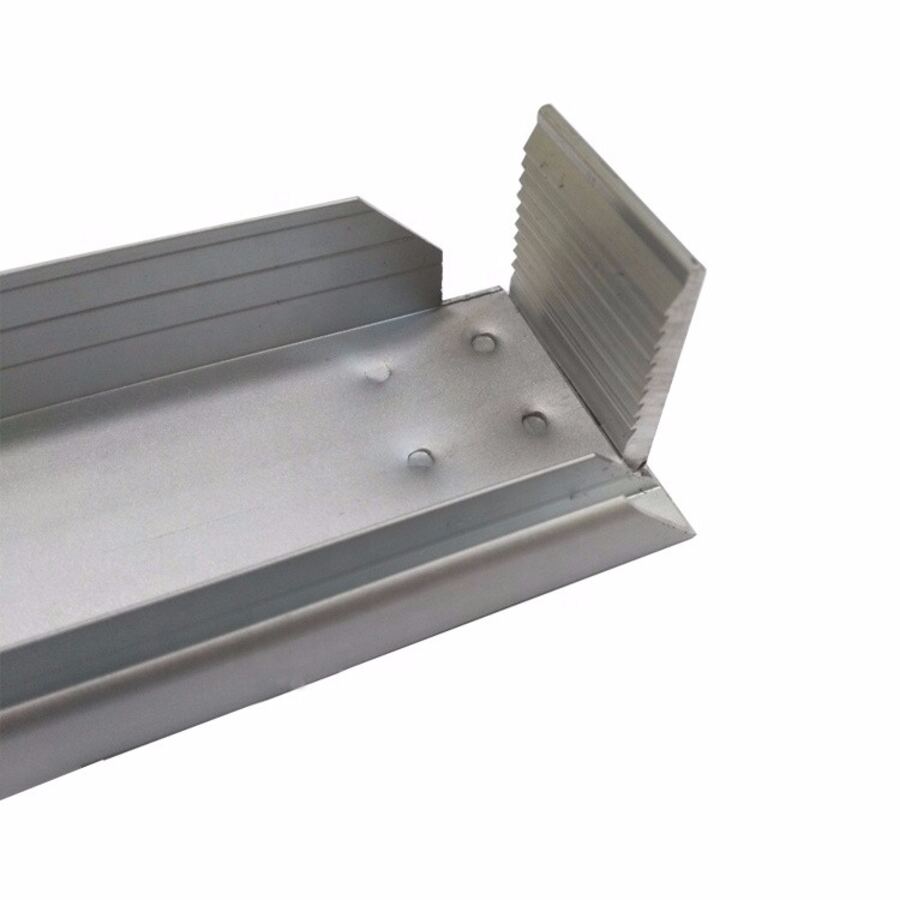

Two-way embossing to ±0.1 mm. On short frames, corner connectors are inserted and riveted automatically.
Auto inspection
Sensors check every finished frame for correct length and for the presence of each hole.
Packing
Finished frames are stacked in order and packed for dispatch to the module line.
Inside the plant
Machinery

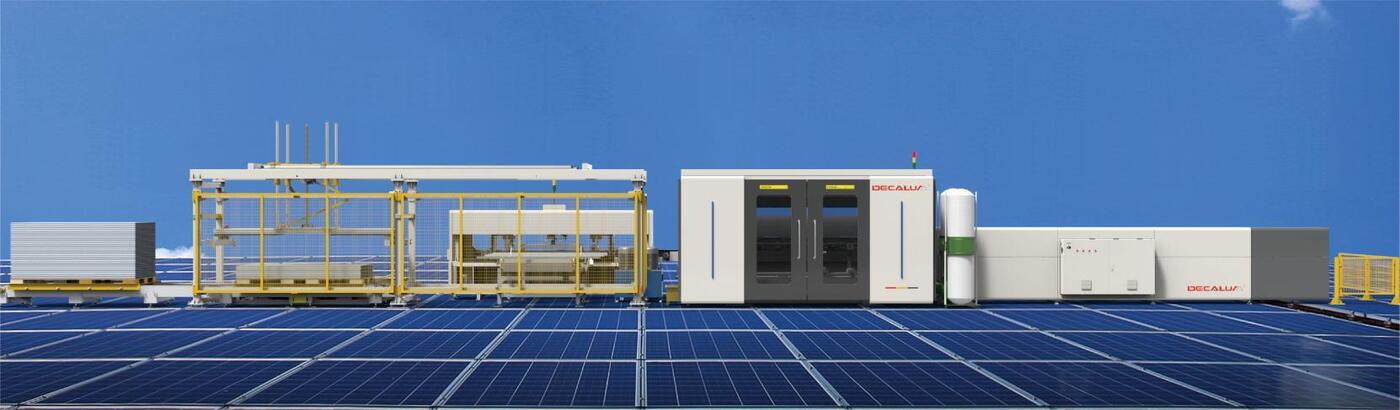

Two dedicated CNC lines, one for long frames and one for short frames, plus a CNC corner-connector saw.

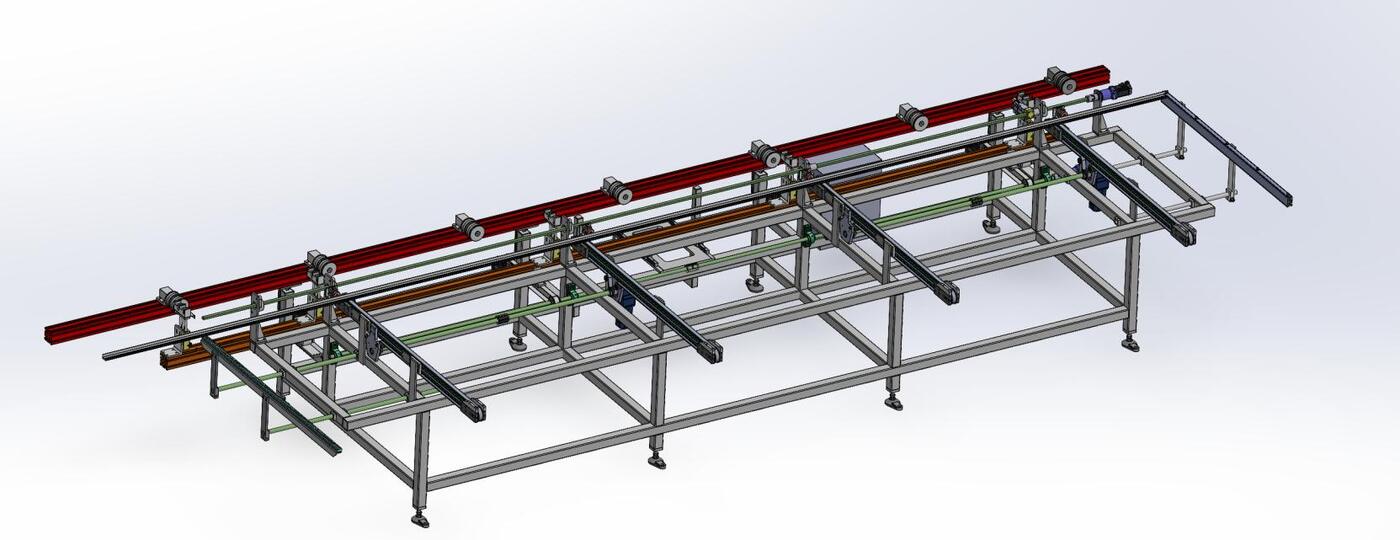

Up to 7.5 m
Automatic feeding host
Stores 4–7.5 m profiles and feeds them at equal or unequal spacing by program, on servo motor and precision rack drive.
±0.1 mm · ±0.5°

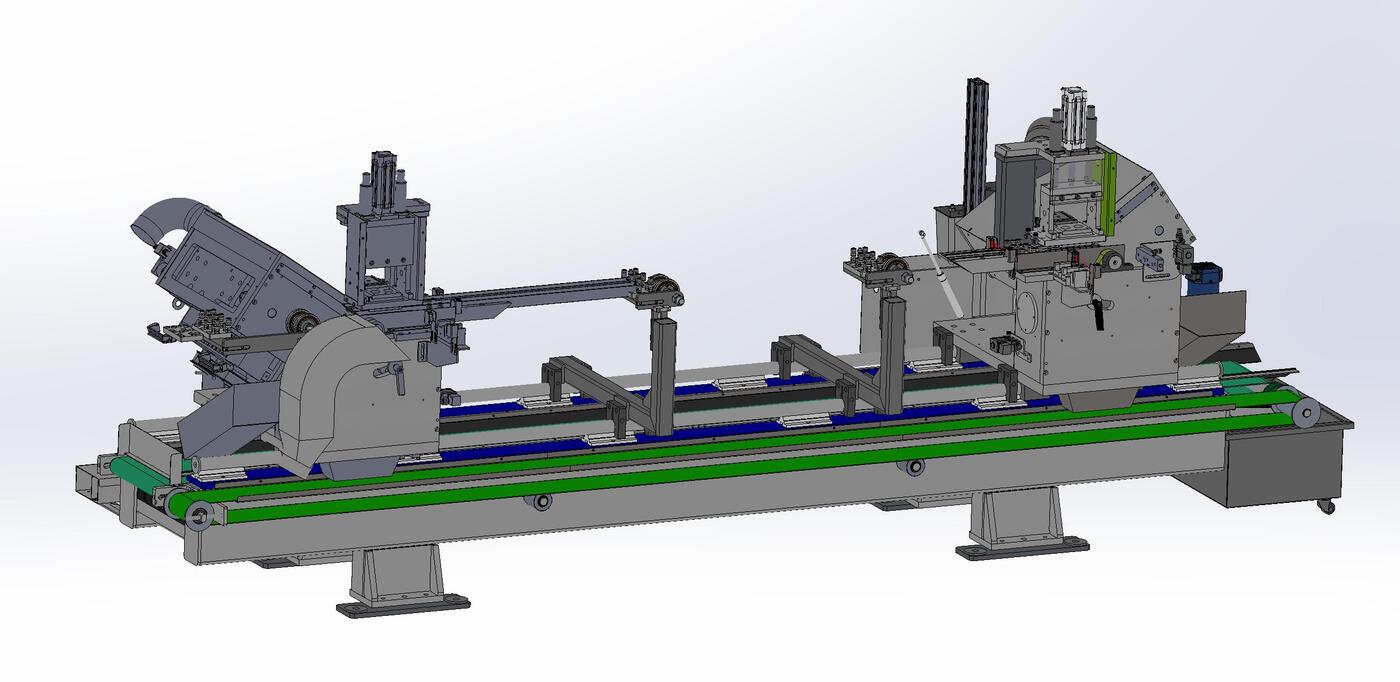

Double-head saw
Cuts both ends at once at 35°, 45°, 55° and 90°, with two conveyors and two vacuum units for chips.
±0.1 mm
Integrated punching station
Drainage hole, mounting hole and grounding mark punched together. Moulds change in 5–10 minutes.
±0.1 mm
Two-way embossing station
Separates and embosses workpieces automatically and installs corner connectors on short frames.
12 pcs / cycle

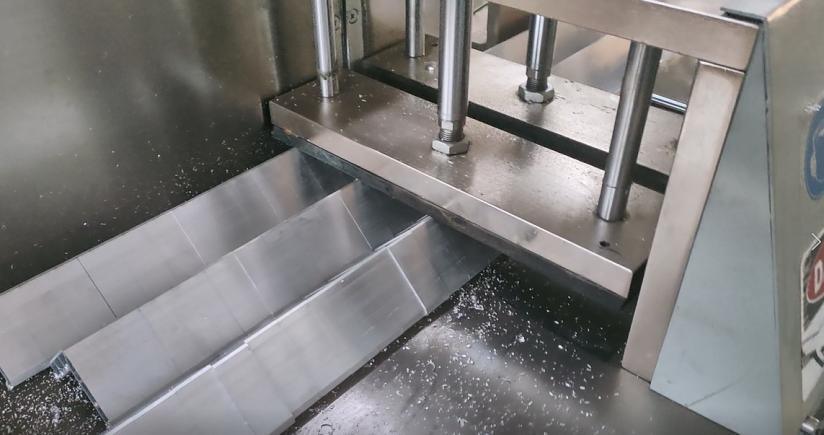

CNC corner-connector saw
Ø500 mm blade, touch-screen length entry and automatic profile feed for high-volume 90° corner keys.
25 frames / min
CNC control
One control host coordinates every station, shows live counts and parameters, and stores programs.
Quality
Checked at every stage
Solar frames spend decades outdoors. We check the material before it enters the line and every frame before it leaves.
- Quality of Anodized profile thoroughly checkedIncoming anodized aluminium is inspected for coating quality and finish before cutting.
- ±0.1 mm cutting precisionLength held to ±0.1 mm within 2600 mm; cut angle held to ±0.5°.
- Automatic length and hole checkSensors verify the length of every finished frame and the presence of each C-side hole.
- Scratch-free handlingRoller tables and automatic grippers keep the anodized surface intact through the line.
- 99.9% pass rateFinished product pass rate on the automated line.
Technical data
Specifications
| Material | Every frame cut from Anodized aluminium profile |
|---|---|
| Long frame range | 1500 – 2600 mm |
| Short frame range | 800 – 1500 mm |
| Max. profile length | Up to 7.5 m |
| Cutting precision | ±0.1 mm (within 2600 mm) |
| Sawing angles | 35° · 45° · 55° · 90° |
| Angle precision | ±0.5° |
| Punching accuracy | ±0.1 mm |
| Stamping depth accuracy | ±0.1 mm |
| Output per line | 25 finished frames / min |
| Daily output | ≈ 15,000 per line · ≈ 30,000 on both lines (10 h) |
| Pass rate | 99.9% |
| Mould change time | 5 – 10 minutes |
| Custom work | Frames made to client drawings |
Gallery
Frames and production
Contact
Send us your drawing
Tell us your frame size, profile and quantity, or attach your drawing. We will reply with a quotation.
Email
llptranslam@gmail.com
Factory address
Khasra No. 474/5, Link Road,
Om Polymer Industries, Village Kashi,
Meerut, Uttar Pradesh – 250103
Om Polymer Industries, Village Kashi,
Meerut, Uttar Pradesh – 250103
For a fast quote, include
- Module size and frame lengths (long and short side)
- Profile drawing or section reference
- Hole positions: drainage, mounting, grounding
- Finish: silver or black anodized
- Monthly quantity and delivery location
